Power Transmission Right Angle Units In-line Units Variable speed Units A/C Inverter Drives Clutches Couplings Free Wheels Chains Oil Field Chains Cement Chains Bakery Chains Theme Park Bucket Elevator Chain Heavy Duty Chains Sprockets   Silent Chains Ajex Eccentric  Vibrators Ajax Shaker Drives		OPTIDRIVE AC INVERTER

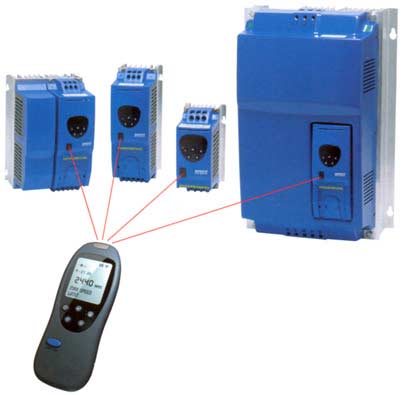

		A range of electronic AC control systems up to 37kW (50HP) capacity as standard, from a single and 3 phase supply. Available as digital and multi-parameter facility covering most control applications. • Simple to use with user friendly programming • Package solutions with all other Renold gear products • Optiwand remote control programming • Communication module option available     Technical Specifications: • 3 programmable digital inputs • 1 bipolar analogue input (voltage or current) with 12 bits resolution • 1 programmable analogue output (current or frequency) with 10 bits resolution • 1 programmable output relay • Analogue input updating cycle < 8ms • Galvanic insulation of all control terminals>2.5kV • Protection against digital output short-circuits • Constant torque or fan/pump curve • 4 pre-selected speeds • Automatic reset and restart • Skip frequency • Internal brake unit (for sizes 2,3,4) • Silent motor (effective switching frequency32 kHz) • Integrated RFI filter options • CE marked for low voltage directives
